GEL 6707 is a colorless,Junction Box Waterproofing Silicone gel sealant

We supply OEM & ODM service, You are welcome to test the samples!

Description

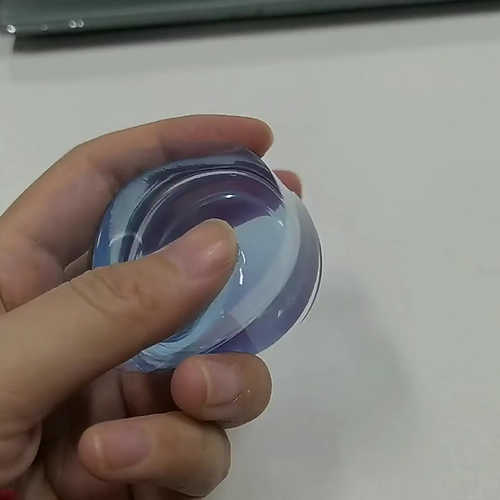

GEL 6707 is a colorless, transparent and strong silicone gel gel, which is an elastic soft material that forms a buffer after curing.

It is used to insulate circuit boards from moisture and other harmful contaminants, and to provide insulation against high voltages.

Another use is to provide stress relief to protect circuits and interconnectors from high temperature and mechanical stress.

* 1:1 addition molding for high elasticity

* Excellent flexibility , eliminates mechanical stress

* Very low oil permeability after curing, excellent resistance to toxicity

* High temperature electrical insulation is excellent, to provide protection against high pressurel Excellent aging resistance and weather resistancel Excellent waterproof, anticorrosive, moisture-proof, chemical medium resistance

Product Packaging

GEL 6707 organic silicone,

l order code: A: 2KSI5234; B: 2KSI5235

l A/B packing is 10kg/pot respectively, 20kg set

l Other packing is to be made to order

We supply OEM & ODM service, You are welcome to test the samples!

As a manufacturer, we would like to share with you what we have learned about the different types of potting compounds and their characteristics.
The potting compounds on the market vary in viscosity, requirements for cure conditions, among other factors. Compounds such as polyurethane, silicone, and epoxy are widely used in a variety of applications.
Silicone Potting Compounds are soft and flexible, silicone potting compounds and encapsulating materials possess a good level of elongation.Silicone potting compound can also withstand a wide range of temperatures. Most silicone materials are able to operate at temperatures between -40°C and 200°C.
Epoxy potting compounds generally perform as a better adhesive, high-temperature resistance, and chemical resistance and have better adhesion to a wide variety of substrates and typically do not need primers.
Polyurethane Potting Compounds generally have better flexibility, elongation, and abrasion resistance.
Acrylic Potting Compounds are UV and heat-hardening materials, with fast hardening, adequate chemical resistance, and clear appearance.

GEL 6707 is a colorless,Junction Box Waterproofing Silicone gel sealant

$11.00

20 Kilograms

Color: Translucent

Quantity

Component A Component B

IngredientsPolysiloxanes Hydrogen-containing polysiloxanesAppearance Colorless clear liquid withoutimpurities Colorless transparent liquid withoutimpurities

Viscosity,25℃ CPS1000-1500 1000-1500

Density, g/cm30.97±0.05 0.97±0.05

Mixing ratioA: B = 100:100 weight ratio

Viscosity after mixing, CPS 1000-1500 at 25 ℃

Operating time after mixing30-50 minutes 25 ℃

Surface drying time 60-120 minutes 25℃

Appearance Clear colorless gel

Hardness Shore A20-25

Dielectric strength (KV/mm)25

Volume resistance (Ω·cm) DC500V1 × 1015

Loss factor ( 1 MHz)0.01

Dielectric constant ( 1 MHz)2.8

Use temperature range- 60 ∽ 200℃
l The A and B components are weighed at a ratio of 1:1, mixed evenly, and injected directly into the components (or modules) that need to be potting and protected.

l The pot-sealed component will stand, the operation time is very fast, and it can be cured in a short time, and the initial curing at normal temperature is about 50-60mins; The operation is suitable for glue filling equipment to implement.
l This product should be stored in A cool and    dry environment below 25℃ , and the storage period of A/B below 25℃ is 1 year.

l The products that exceed the storage period should be tested to confirm whether there is  any abnormality before use.

l Such products are classified as     non-dangerous goods and can be

transported as general chemicals. Be careful of leaks during transportation!
As a manufacturer, we would like to share with you what we have learned about the different types of potting compounds and their characteristics.
The potting compounds on the market vary in viscosity, requirements for cure conditions, among other factors. Compounds such as polyurethane, silicone, and epoxy are widely used in a variety of applications.
Silicone Potting Compounds are soft and flexible, silicone potting compounds and encapsulating materials possess a good level of elongation.Silicone potting compound can also withstand a wide range of temperatures. Most silicone materials are able to operate at temperatures between -40°C and 200°C.
Epoxy potting compounds generally perform as a better adhesive, high-temperature resistance, and chemical resistance and have better adhesion to a wide variety of substrates and typically do not need primers.
Polyurethane Potting Compounds generally have better flexibility, elongation, and abrasion resistance.
Acrylic Potting Compounds are UV and heat-hardening materials, with fast hardening, adequate chemical resistance, and clear appearance.

GEL 6707 is a colorless,Junction Box Waterproofing Silicone gel sealant
