EP 3090 High Performance Electronic Epoxy structure adhesive

EP 3090 epoxy adhesive is a two-component room temperature curing epoxy resin. Designed for bonding ceramic, metal, glass, plastic, rubber, paper, cloth and other materials.

A and B components are thoroughly mixed 1:1 (weight ratio or volume ratio) after use, the product has a 40 min operation time, after curing to form a transparent hard protective layer, and there is a black version.

The cured adhesive has the following characteristics:

Resistance to moisture, dirt, and other atmospheric components
High strength, excellent adhesion
Good pollution resistance, low surface pretreatment requirements
No solvent, no curing byproducts
Stable mechanical and electrical properties between -50 and 120℃
It has good adhesion to plastic PC, glass fiber cloth and steel plate

At Maxtech, the EP 3090 High Performance Electronic Epoxy structure adhesive delivers exceptional bonding strength and durability for demanding maintenance applications. Designed to withstand harsh environments, this epoxy ensures reliable electronic component protection and structural integrity. As a leading supplier of PU Adhesive Sealant, Silicone Sealant, MS polymer sealant, Waterproofing coating, Waterproofing tape, and lubricating grease, Maxtech provides solutions that meet the highest industry standards. Trust EP 3090 for a high-performance adhesive that supports your critical repairs with lasting results. Maxtech’s commitment to quality and service guarantees optimal performance for your maintenance needs.

EP 3090 High Performance Electronic Epoxy structure adhesive

US$12.00

US$360.00 per 30 Kilograms

Color

EP 3090 epoxy structure adhesive is a two-component room temperature curing epoxy resin. (optional)

0/500

Quantity

Epoxy Structure Adhesive

Test items   Test standard   Unit   Black    Clear
A   Appearance   Visual   ---   Black slurry   Colorless or light yellow transparent liquid
   Viscosity   GB/T 2794-1995   mPa·s（25℃）   13,000±2,500   13,000±2,000
   Density   GB/T 13354-1992   g/cm3（25℃）   1.15±0.05   1.10±0.05
B   Appearance   Visual   ---   Colorless transparent   Colorless transparent
   Viscosity   GB/T 2794-1995    mPa·s（25℃）   15,000±5,000   15,000±5,000
   Density   GB/T 13354-1992   g/cm3（25℃）   1.06±0.05   1.06±0.05
Property before cured
Item    -   Unit or condition   EP 3090 black   EP 3090 crear
Mixing ratio   -   Weight ratio   100:100   100:100
Mixing ratio   -   Volume ratio   100:100   100:100
Mixing density   -   g/cm3（25℃）   1.15±0.05   1.15±0.05
Tack frees time   -   min（25℃）   37±8   13±5
Initial curing time   -   25℃/mins   120   120
Property after cured
Item    -   Unit or condition   EP 3090 black   EP 3090 crear
Hardness    GB/T531-2008   Shore D   85±5   85±5
Shear strength   GB/T 7124-2008   Mpa，Al/Al   13   13
Shear strength   GB/T 7124-2008   Mpa，Fe/ Fe   ≥10   ≥6
Shear strength   GB/T 7124-2008   Mpa，Fe/ Fe，
After grinding   20   20
Coefficient expansion   GB/T20673-2006   μm/（m，℃）   100   100
Water absorption   GB/T8810-2005   24h，25℃，%   <0.3   <0.3
Dielectric strength   GB/T1693-2007   kV/m（25℃）   >20   >20
Loss factor   GB/T1693-2007   （1MHz）(25℃)   0.014   0.014
Dielectric constant   GB/T1693-2007   （1MHz）(25℃)   3.53   3.53
Volume resistance   GB/T1692-92   (DC500V)Ω· cm   1.2×1015   1.2×1015
50ml and double-barrel support, the use of 1:1 mixing glue gun construction, the glue of the first extrusion of the mixing tube is discharged, in order to prevent the uneven initial mixing resulting in poor bonding effect. Double barrel packaging should pay attention to the sealing of the material port, and replace the mixing hose in time. Manual use of bulk packaging, mixing adhesive materials need to be quickly weighed and stirred, this method is suitable for places with low bonding requirements; Otherwise, you need to use a two-component dispensing machine to mix and apply glue. The temperature is too low will cause the curing speed to be slow, and when the initial strength cannot be reached, it needs to be controlled at the site by constant temperature. Care needs to be taken to keep the Cartridge mouth sealed during use of cartridge packaging.
Components A and B should be kept away from light and heat and sealed (can be transported and stored as non-dangerous goods);

Storage period Component A: 1 year, Component B: 1 year (25℃);

Beyond the validity period, if you need to continue to use, please first test whether it can be cured normally.
As a manufacturer, we would like to share with you what we have learned about the different types of potting compounds and their characteristics.
The potting compounds on the market vary in viscosity, requirements for cure conditions, among other factors. Compounds such as polyurethane, silicone, and epoxy are widely used in a variety of applications.
Silicone Potting Compounds are soft and flexible, silicone potting compounds and encapsulating materials possess a good level of elongation.Silicone potting compound can also withstand a wide range of temperatures. Most silicone materials are able to operate at temperatures between -40°C and 200°C.
Epoxy potting compounds generally perform as a better adhesive, high-temperature resistance, and chemical resistance and have better adhesion to a wide variety of substrates and typically do not need primers.
Polyurethane Potting Compounds generally have better flexibility, elongation, and abrasion resistance.
Acrylic Potting Compounds are UV and heat-hardening materials, with fast hardening, adequate chemical resistance, and clear appearance.
EP 3090 transparent epoxy structural adhesive

Order code: A: 2KEP6670; B: 2KEP6671; A+B: 2KEP6672

EP 3090 black epoxy structural adhesive

Order code: A: 2KEP6611; B: 2KEP6671; A+B: 2KEP6678

Component A: 1 kg/barrel; Component B: 1kg/ bottle;

Component A: 5 kg/barrel; Component B: 5kg/ bottle;

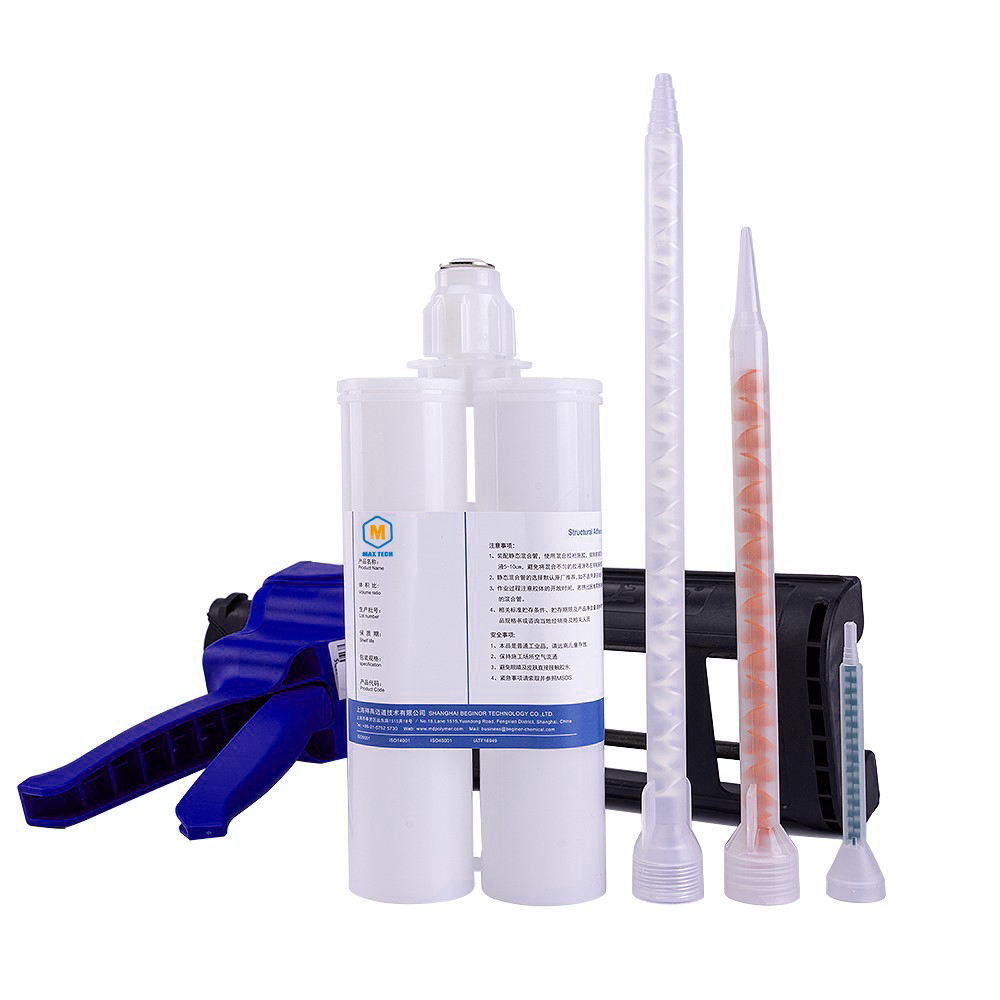

A+B double tube package, 50ml/ bottle

A+B double tube package, 400ml/ piece

This glue is not dangerous and can be transported as a general chemical

EP 3090 High Performance Electronic Epoxy structure adhesive

∎Technical Data Table

Process of use

Storage and Transportation

Order & Shipping

Different potting materials

Order packing
